Cutting Disc RPM Explained for B2B Buyers

Cutting disc RPM is one of the most important specifications industrial buyers must check before purchasing, importing or distributing abrasive wheels.

RPM means revolutions per minute. It shows how many times a cutting disc rotates in one minute. However, the RPM printed on a cutting disc is not a recommended operating target. It is normally the maximum operating speed that must not be exceeded.

The basic compatibility rule is simple:

The maximum RPM marked on the cutting disc must be equal to or higher than the rated or no-load speed of the machine.

For example, a grinder operating at 12,000 RPM should never be fitted with a cutting disc rated for only 8,500 RPM. Even when the disc has the correct diameter and bore size, the speed mismatch can create a serious wheel-breakage risk.

For B2B buyers, checking cutting disc RPM is therefore not only a technical requirement. It also affects product safety, cutting performance, customer satisfaction and distributor liability.

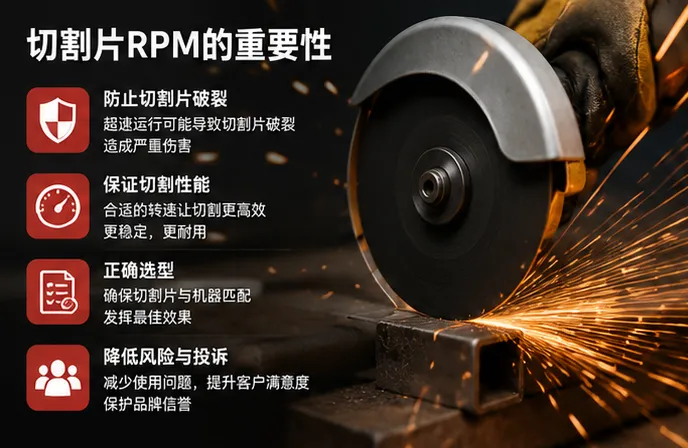

Why This Technical Detail Matters for Industrial Users

A cutting disc rotates at very high speed. During operation, the outer edge of the wheel may travel at tens of metres per second. At this speed, incorrect mounting, disc damage or excessive machine RPM can place extreme stress on the abrasive wheel.

The maximum operating speed matters for several reasons.

1. It reduces the risk of wheel breakage

When a cutting disc rotates faster than its rated maximum speed, centrifugal force increases. The wheel may no longer be able to withstand the stress generated during rotation.

Possible consequences include:

• Cracking around the centre hole
• Separation of the abrasive material
• Damage to the reinforcing mesh
• Sudden wheel breakage
• High-speed fragments striking the operator or nearby equipment

Protective guards and personal protective equipment are essential, but they should never be treated as a substitute for correct speed matching.

2. It affects cutting performance

Using the correct abrasive wheel speed helps the disc cut efficiently and wear predictably.

When the operating conditions are unsuitable, users may experience:

• Slow cutting
• Excessive wheel wear
• Overheating
• Burning or discoloration of the workpiece
• Increased sparks
• Disc glazing
• Unstable cutting
• Frequent product complaints

A performance complaint that appears to be caused by abrasive quality may actually be caused by the wrong machine speed, excessive pressure or an unsuitable disc size.

3. It helps buyers select the correct disc for each machine

Industrial buyers often purchase cutting discs for several machines, including:

• Angle grinders
• Straight grinders
• Petrol cut-off saws
• Electric cut-off machines
• Chop saws
• Stationary cutting machines
• Rail cutting machines

These machines can have very different spindle speeds, power levels, guards and flange systems. Buyers should therefore confirm the machine model and speed before selecting the disc.

4. It reduces distributor and importer risk

Distributors are often the first point of contact when an end user reports poor cutting performance or wheel failure.

Clear RPM information on the product label, packaging, specification sheet and sales documents can help distributors:

• Prevent incorrect product selection
• Train sales representatives
• Answer technical questions
• Reduce avoidable complaints
• Investigate failures more accurately
• Improve customer confidence

Key Terms and Specifications Explained

Understanding several related terms will help buyers compare abrasive wheel speed correctly.

RPM

RPM means revolutions per minute. It measures rotational speed.

A marking of 13,300 RPM, for example, means the disc must not be operated above 13,300 revolutions per minute.

RPM alone does not describe the speed at the outer edge of the disc. Disc diameter must also be considered.

Maximum operating speed

Maximum operating speed is the highest speed at which the abrasive wheel is designed to operate under the specified conditions.

It may be shown on the label as:

• Max RPM
• Maximum RPM
• Maximum operating speed
• Max. speed
• RPM max

This value is a safety limit, not a suggested speed that users should try to reach or exceed.

Peripheral speed or surface speed

Peripheral speed describes how fast the outside edge of the cutting disc travels.

It may be expressed as:

• Metres per second, or m/s
• Surface feet per minute, or SFPM

The relationship between disc diameter, RPM and peripheral speed can be calculated using the following formula:

Peripheral speed in m/s = π × disc diameter in metres × RPM ÷ 60

The formula can also be rearranged:

RPM = peripheral speed × 60 ÷ π × disc diameter

For illustration, a 115 mm disc with a peripheral speed rating of 80 m/s corresponds to approximately 13,300 RPM.

However, buyers should always use the RPM actually printed on the wheel and approved by the manufacturer rather than relying only on a calculated value.

Why larger cutting discs usually have lower RPM ratings

A larger disc travels farther during each revolution. Therefore, it can reach the same peripheral speed at a lower RPM.

The following figures illustrate the relationship at a surface speed of approximately 80 m/s:

Disc diameter	Approximate corresponding speed
100 mm	15,300 RPM
115 mm	13,300 RPM
125 mm	12,200 RPM
180 mm	8,500 RPM
230 mm	6,650 RPM
300 mm	5,100 RPM
355 mm	4,300 RPM

These are mathematical examples rather than universal product ratings. Actual maximum operating speed depends on the wheel design, dimensions, reinforcement, bond system, application and applicable safety requirements.

Rated tool speed and no-load speed

The speed printed on a grinder or cutting machine may refer to its rated speed or no-load speed.

Buyers should check the machine nameplate and technical manual instead of estimating the speed from motor power or disc diameter.

The machine speed must not exceed the maximum RPM marked on the cutting disc.

Maximum speed is not the same as ideal cutting speed

A wheel may be approved for use up to a particular maximum RPM, but cutting performance is also affected by:

• Machine power
• Workpiece material
• Disc thickness
• Abrasive grain
• Bond hardness
• Contact area
• Cutting pressure
• Operator technique
• Machine condition

RPM compatibility is therefore the first safety check, not the only performance consideration.

Common Causes of Failure or Poor Performance

Many abrasive wheel problems are linked to incorrect product selection or operating conditions rather than a single manufacturing defect.

Using a disc with a lower RPM rating than the machine

This is one of the most serious mistakes.

For example, placing a large-diameter, low-RPM cutting disc on a high-speed angle grinder can expose the wheel to speeds beyond its design limit.

Removing the machine guard to install an oversized disc makes the situation even more dangerous.

Installing the wrong disc diameter

Each machine is designed for a specific range of wheel diameters.

An oversized disc may:

• Exceed the permitted peripheral speed
• Contact the guard
• Require removal of the guard
• Use an unsuitable flange
• Create excessive leverage during cutting

A smaller disc should also be checked carefully because the bore, flange and intended tool type may not be compatible.

Using an unreadable or damaged label

The label provides essential information such as:

• Disc dimensions
• Maximum RPM
• Maximum peripheral speed
• Wheel type
• Application
• Safety pictograms
• Material restrictions
• Traceability or batch information

If the RPM marking cannot be read, the disc should not be installed based on guesswork.

Applying side pressure to a cut-off wheel

Thin cutting discs are designed mainly for radial cutting. They should not normally be used for heavy side grinding.

Twisting, bending or applying lateral pressure can damage the wheel structure and reinforcing layers.

For combined cutting and grinding operations, buyers should select a wheel specifically designed and marked for both applications.

Forcing the disc through the workpiece

Excessive pressure does not necessarily increase cutting speed.

It may instead cause:

• Motor speed reduction
• Excessive heat
• Uneven disc wear
• Wheel binding
• Edge damage
• Loss of cutting control
• Increased risk of wheel breakage

The abrasive grains should perform the cutting. Operators should use controlled pressure and allow the machine to maintain a stable speed.

Allowing the disc to bind in the cut

Binding can occur when:

• The workpiece is not properly supported
• The cut closes around the wheel
• The operator changes direction inside the cut
• The machine is not aligned
• The disc is pushed too deeply
• The workpiece moves during cutting

Binding can generate severe side loading and kickback.

Using damaged flanges or incorrect mounting parts

The flanges help support and centre the wheel.

Problems may occur when flanges are:

• Bent
• Worn
• Unequal in size
• Contaminated
• Incorrect for the machine
• Installed in the wrong direction
• Overtightened

The bore should fit the machine spindle correctly. A cutting disc should never be forced onto an unsuitable spindle.

Continuing to use a damaged disc

A disc should be removed from service when it shows:

• Cracks
• Chips
• Warping
• Water damage
• Centre-hole damage
• Loose or damaged labels
• Abnormal vibration
• Impact damage
• Contamination by oil or chemicals

A disc that has been dropped should be inspected carefully, even when no obvious crack is visible.

Trying to compensate for poor performance by increasing speed

Users should never modify a machine or increase spindle speed beyond the disc rating to improve cutting performance.

Poor performance should instead be investigated by checking:

• Disc specification
• Abrasive material
• Bond formulation
• Disc thickness
• Workpiece material
• Machine power
• Flange condition
• Cutting pressure
• Storage conditions

Safe Use, Storage and Inspection Checklist

A practical safety system should cover product selection, storage, inspection, mounting and operation.

Before purchasing

Confirm the following information with the supplier:

• Machine type and model
• Machine rated or no-load RPM
• Required disc diameter
• Disc thickness
• Bore size
• Wheel shape or type
• Workpiece material
• Cutting method
• Dry or wet use
• Required safety standard
• Target market and label requirements

Do not select a cutting disc based only on diameter and price.

Before mounting

Check that:

• The disc is approved for the intended machine
• The maximum disc RPM is equal to or higher than the machine speed
• The diameter, thickness and bore are correct
• The label is complete and readable
• The disc has no cracks, chips or deformation
• The flange surfaces are clean
• The guard is installed correctly
• The spindle and mounting parts are undamaged
• The wheel is suitable for the material being cut

Disconnect the machine from its power source before installing or changing the disc.

During mounting

Operators should:

• Follow the tool manufacturer’s instructions
• Use the correct flanges and mounting hardware
• Avoid forcing the wheel onto the spindle
• Avoid excessive tightening
• Confirm that the wheel rotates freely
• Keep the guard between the operator and the wheel
• Avoid modifying the bore or centre hole

After mounting, conduct a controlled no-load trial run according to the machine and wheel manufacturer’s instructions. Personnel should remain outside the plane of rotation while the wheel reaches operating speed.

During operation

Operators should:

• Wear appropriate eye, face, hearing and respiratory protection
• Keep the safety guard in place
• Secure the workpiece
• Maintain a stable working position
• Use controlled cutting pressure
• Keep the wheel straight in the cut
• Avoid twisting or side loading
• Stop immediately if abnormal vibration occurs
• Keep other workers away from the cutting area
• Allow the disc to stop completely before setting down the tool

Storage checklist

Resin-bonded cutting discs should be stored in a clean, dry and controlled environment.

Avoid:

• Water and high humidity
• Direct sunlight
• Excessive heat
• Freezing conditions
• Sudden temperature changes
• Oil or chemical contamination
• Heavy objects placed on thin discs
• Bent or damaged packaging
• Uncontrolled stacking

Use a first-in, first-out inventory system and keep batch labels visible. Follow the manufacturer’s storage and shelf-life instructions.

How Distributors Can Reduce Customer Complaints

Distributors can reduce many RPM-related complaints before the products reach the end user.

Collect machine information before recommending a product

Sales staff should ask for:

1. Machine type
2. Disc diameter
3. Bore size
4. Machine RPM
5. Material being cut
6. Required cutting performance
7. Current product problems

A photo of the machine nameplate can help confirm compatibility.

Make RPM information easy to identify

Maximum operating speed should be clearly printed on:

• Product labels
• Individual packaging
• Inner boxes
• Cartons
• Technical data sheets
• Online product pages
• Distributor catalogues

The information should remain legible during normal transport, storage and handling.

Avoid mixing visually similar discs

Discs with similar labels may have different:

• Diameters
• Thicknesses
• Bore sizes
• Applications
• RPM ratings
• Abrasive formulations

Warehouses should use clear product codes and separate storage locations to prevent picking errors.

Provide a basic speed compatibility chart

A simple compatibility chart can help sales teams and customers understand why different disc diameters have different RPM limits.

The chart should always state that the product label and manufacturer’s technical information take priority over general reference figures.

Improve batch traceability

Distributors should retain:

• Purchase order number
• Product code
• Batch number
• Production date
• Quantity received
• Customer delivery record
• Complaint photographs
• Machine information
• Used and unused samples

Good traceability helps distinguish between product issues, shipping damage, storage problems and incorrect use.

Investigate complaints systematically

When a customer reports wheel breakage or poor performance, ask for:

• Full photographs of the disc
• Close-up photographs of the label
• Machine model and RPM
• Guard and flange photographs
• Workpiece material
• Cutting method
• Storage conditions
• Number of affected discs
• Batch number
• Description of when the problem occurred

Avoid deciding that a complaint is either a product defect or operator error before the evidence has been reviewed.

Find the Right THX Cutting Disc for Your Machine

Correct RPM matching starts with complete application information.

THX Abrasives supplies cutting discs for different sizes, machines and industrial materials, including ordinary steel, stainless steel, structural steel, pipes and other metal applications.

Buyers can explore the THX cutting disc product range and compare available dimensions, thicknesses and application options.

For a more accurate recommendation, provide the following details:

• Required disc size
• Machine type
• Machine RPM
• Workpiece material
• Target market
• Required safety markings
• OEM label design
• Packaging requirements
• Estimated order quantity

Contact THX to request:

• Product specification sheets
• Cutting disc RPM information
• Samples for application testing
• OEM or private-label support
• Packaging options
• Safe-use recommendations
• Bulk-order quotations

Contact THX Abrasives to discuss your application and request a suitable cutting disc sample.

Safety note: Always follow the cutting disc label, machine manufacturer’s instructions and applicable local safety regulations. Never operate an abrasive wheel above its marked maximum operating speed.
